Minimum Order Quantity: 1pc
Product Name: |
Enamel Inner Tank Production Line |
Nominal Pressure ( KN ): |
8000 |
Nominal Pressure Stroke ( Mm ): |
13 |
Slider Stroke ( Mm ): |
800 |
Maximum Die Height ( Mm ): |
1400 |
Die Height Adjustment ( Mm ): |
600 |
Product Name: |
Enamel Inner Tank Production Line |
Nominal Pressure ( KN ): |
8000 |
Nominal Pressure Stroke ( Mm ): |
13 |
Slider Stroke ( Mm ): |
800 |
Maximum Die Height ( Mm ): |
1400 |
Die Height Adjustment ( Mm ): |
600 |
The three-roll plate rolling machine is mechanically lifted and driven. It features a section steel welded frame that has undergone vibration aging treatment. The upper roller can be electrically lifted and separated, while various side wheels can be added to process different special-shaped structures according to customer requirements. With easy operation and high production efficiency, it can handle materials up to 4mm thick, with dimensions of 3.5m x 1m x 1.1m.

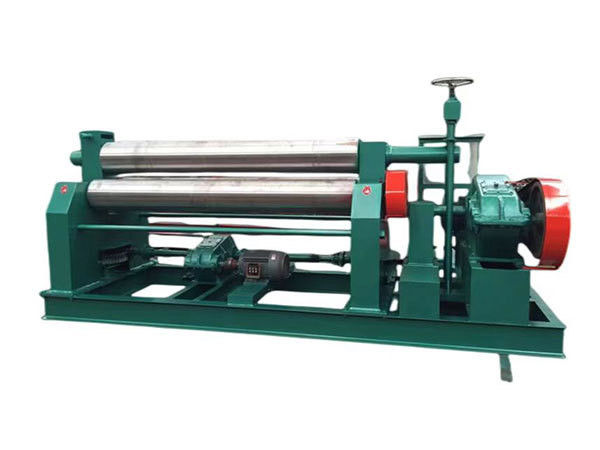

Three-roll plate rolling machine
The three-roll plate rolling machine is mechanically lifted and driven. It features a section steel welded frame that has undergone vibration aging treatment. The upper roller can be electrically lifted and separated, while various side wheels can be added to process different special-shaped structures according to customer requirements. With easy operation and high production efficiency, it can handle materials up to 4mm thick, with dimensions of 3.5m x 1m x 1.1m.
Product parameters
|
Device name |
Three-roll plate rolling machine |
|
Device model |
LRM04 |
|
Maximum coil width |
1600mm |
|
Working length of roll surface |
1650mm |
|
Maximum coil thickness |
8mm |
|
Full load minimum roll diameter |
Φ800mm |
|
Sheet yield limit |
6s≤245Mpa |
|
Upper roll diameter |
159mm (thick wall tube) |
|
Bottom roll diameter |
159mm (thick wall tube) |
|
Rolling speed approx. |
4m/min |
|
Pressing speed of upper roller |
30mm/min |
|
Main motor power |
2.2 kW |
|
Effective working length |
2500mm |
|
Machinable plate thickness |
0.2-4mm |
|
Machine size |
3.5M×1M×1.1M |
