Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Product Name: |
Enamel Inner Tank Production Line |
Nominal Pressure ( KN ): |
8000 |
Nominal Pressure Stroke ( Mm ): |
13 |
Slider Stroke ( Mm ): |
800 |
Maximum Die Height ( Mm ): |
1400 |
Die Height Adjustment ( Mm ): |
600 |
Product Name: |
Enamel Inner Tank Production Line |
Nominal Pressure ( KN ): |
8000 |
Nominal Pressure Stroke ( Mm ): |
13 |
Slider Stroke ( Mm ): |
800 |
Maximum Die Height ( Mm ): |
1400 |
Die Height Adjustment ( Mm ): |
600 |
The small press is mainly composed of a frame, four uprights, an oil cylinder, a hydraulic station, a fuel tank and other parts.The machine is primarily utilized for the production and processing of inner and outer bladder heads as well as barrel supports in solar energy applications. It features a compact design, low energy consumption, user-friendly operation, and high safety standards. With a tonnage range of 10-100 tons, power output of 7.5K, the ability to process sheet thicknesses ranging from 0.2-1.2M, and dimensions measuring at 2m x 1.1m x 1.7m.

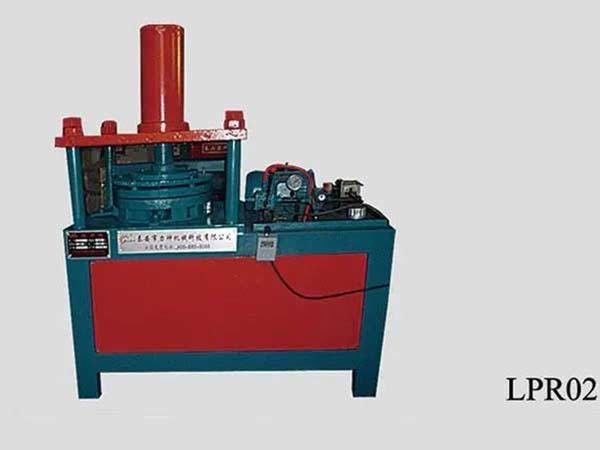

Small press
The small press is mainly composed of a frame, four uprights, an oil cylinder, a hydraulic station, a fuel tank and other parts.The machine is primarily utilized for the production and processing of inner and outer bladder heads as well as barrel supports in solar energy applications. It features a compact design, low energy consumption, user-friendly operation, and high safety standards. With a tonnage range of 10-100 tons, power output of 7.5K, the ability to process sheet thicknesses ranging from 0.2-1.2M, and dimensions measuring at 2m x 1.1m x 1.7m.
Product parameters
| device name | small press |
| Device model | LPR02 |
| Nominal pressure ( KN ) | 5 000 |
| Nominal pressure stroke ( mm ) | 13 |
| Slider stroke ( mm ) | 800 |
| Maximum die load ( mm ) | 1400 |
| Die height adjustment amount ( mm ) | 600 |
| Slider Bottom Surface Dimensions ( mm ) | 30 00* 1 500 |
| Work surface size ( mm ) | 4600*2500 |
| Upper slider pad thickness ( mm ) | 120+120 |
| trips ( spm ) | 16 in a row |
| Air Cushion Force ( KN ) | 1500 |
| Air cushion force stroke ( mm ) | 0250 (adjustable) |
| Maximum load-bearing capacity of the worktable (tons) | 30 |
| Press continuous stroke work ( ton * m ) | 27 |
| Balance capacity (excluding pad weight) (tons) | 20 |
| Number of fine-tuning ( spm ) | 0.7 ~ 51.5 |
| power | 7.5KW |
| Machinable sheet thickness | 0.2-1.2MM |
| Machine size | 2M×1.1M×1.7M |
