Minimum Order Quantity: 1pc
Product Name: |
Enamel Inner Tank Production Line |
Nominal Pressure ( KN ): |
8000 |
Nominal Pressure Stroke ( Mm ): |
13 |
Slider Stroke ( Mm ): |
800 |
Maximum Die Height ( Mm ): |
1400 |
Die Height Adjustment ( Mm ): |
600 |
Product Name: |
Enamel Inner Tank Production Line |
Nominal Pressure ( KN ): |
8000 |
Nominal Pressure Stroke ( Mm ): |
13 |
Slider Stroke ( Mm ): |
800 |
Maximum Die Height ( Mm ): |
1400 |
Die Height Adjustment ( Mm ): |
600 |
The four-column press is equipped with three speeds of no-load fast, slow die and workpiece deep drawing. It has the advantages of high work efficiency, low energy consumption, convenient operation, stable work, etc. It is widely used in metal pressing, forming, bending, etc. Flanging, correction and other processes. The size of the worktable and the tonnage of the hydraulic cylinder can be customized according to customer requirements.

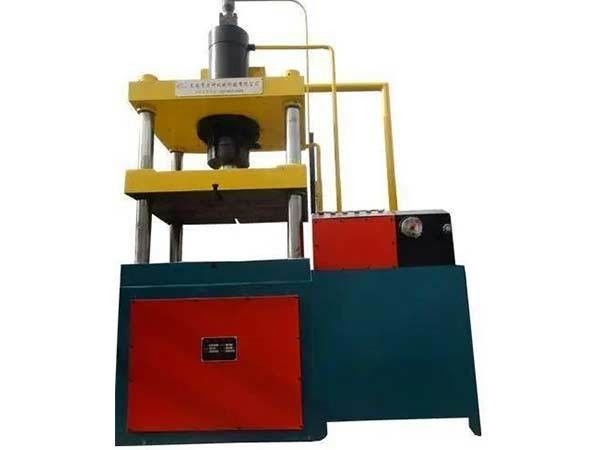

Four-column press (10T-500T)
The four-column press is equipped with three speeds of no-load fast, slow die and workpiece deep drawing. It has the advantages of high work efficiency, low energy consumption, convenient operation, stable work, etc. It is widely used in metal pressing, forming, bending, etc. Flanging, correction and other processes. The size of the worktable and the tonnage of the hydraulic cylinder can be customized according to customer requirements.
Product parameters
| Device name | Four-column press |
| Device model | LPR01 |
| Nominal pressure ( KN ) | 8000 |
| Nominal pressure stroke ( mm ) | 13 |
| Slider stroke ( mm ) | 800 |
| Maximum die height ( mm ) | 1400 |
| Die height adjustment amount ( mm ) | 600 |
| Slider Bottom Surface Dimensions ( mm ) | 4600*2500 |
| Work surface size ( mm ) | 4600*2500 |
| Upper slider pad thickness ( mm ) | 120+120 |
| Trips ( spm ) | 16 in a row |
| Air Cushion Force ( KN ) | 1500 |
| Air cushion force stroke ( mm ) | 0250 (adjustable) |
| Maximum load-bearing capacity of the worktable (tons) | 40 |
| Press continuous stroke work ( ton * m ) | 27 |
| Balance capacity (excluding pad weight) (tons) | 20 |
| Number of fine-tuning ( spm ) | 0.7 ~ 51.5 |
