Minimum Order Quantity: 1pc
Product Name: |
No Tower Water Supply Line |
Input Voltage: |
380V |
Maximum No-load Power: |
220V |
Welding Thickness (mm): |
0.2-4MM |
Effective Length: |
1M |
Machine Size: |
1.5M×0.6M×1.7M |
Product Name: |
No Tower Water Supply Line |
Input Voltage: |
380V |
Maximum No-load Power: |
220V |
Welding Thickness (mm): |
0.2-4MM |
Effective Length: |
1M |
Machine Size: |
1.5M×0.6M×1.7M |
The TIG girth welding machine adopts four-axis CNC welding, and the main engine includes X, Y, Z axis linear motion and R axis rotational motion, which realizes the spatial linear or curvilinear motion of welding and the adjustment of the welding angle between the welding torch and the workpiece. So as to complete the welding work of various special-shaped welds. The equipment consists of a gantry-type welding torch bracket and a welding platform (the welding fixture can be self-made or customized). The machine size is 3.5m x 1.2m x 1.8m.

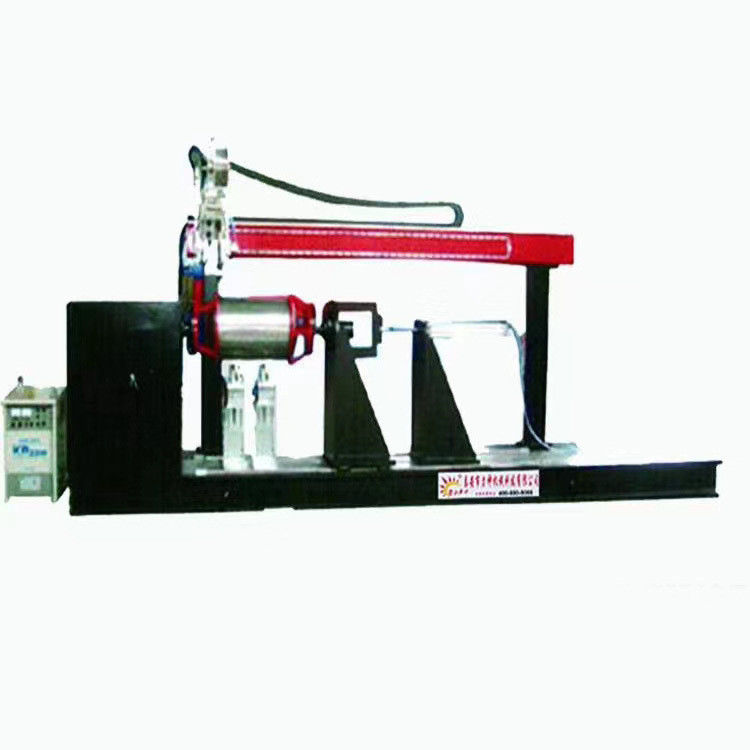

TIG Circular Seam Welder
The TIG girth welding machine utilizes a four-axis CNC welding system, with the main engine featuring linear motion in X, Y, and Z axes as well as rotational motion in R axis. This enables both linear and curvilinear spatial movement of the welding process while allowing for adjustment of the angle between the torch and workpiece to complete various special-shaped welds. The equipment comprises a gantry-type welding torch bracket and a customizable welding platform (with self-made or custom fixtures).
Product parameters
| Device name | TIG Circular Seam Welder |
| Product number | LSW07 |
| Plate thickness (mm) | 0.2-8 |
| Welding layers | 1 |
| Tungsten electrode diameter (mm) | 1.6 |
| Welding current (A) | 110-130 |
| Nozzle aperture (mm) | 5-6 |
| Wire speed | 108-117 |
| Machine size | 3.5M×1.2M×1.8M |
