Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Product Name: |
No Tower Water Supply Line |
Input Voltage: |
380V |
Maximum No-load Power: |
220V |
Welding Thickness (mm): |
0.2-4MM |
Effective Length: |
1M |
Machine Size: |
1.5M×0.6M×1.7M |
Product Name: |
No Tower Water Supply Line |
Input Voltage: |
380V |
Maximum No-load Power: |
220V |
Welding Thickness (mm): |
0.2-4MM |
Effective Length: |
1M |
Machine Size: |
1.5M×0.6M×1.7M |

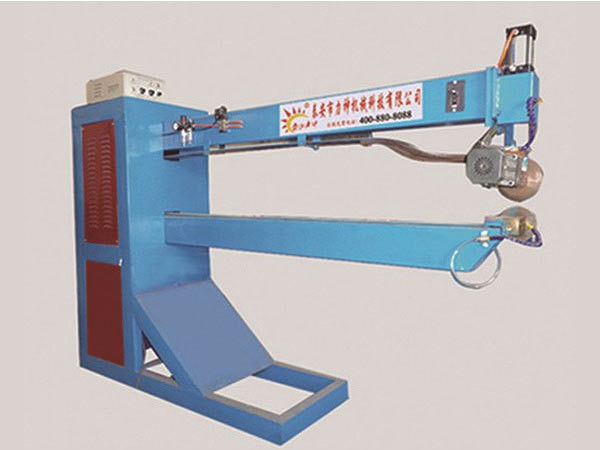

The straight seam welding machine is mainly used for the straight seam circular seam welding of the inner tank of the solar water heater, and has the function of spot welding at the same time. It is a multi-functional water tank resistance welding machine. It can firmly weld carbon steel, stainless steel, galvanized sheet and other plates, with high speed and high precision, without damaging the stainless steel material. The welding length is 1800mm, the power is 50-150KW, the welding thickness is 0.2-1.2MM, and the machine size is 2.5m x 0.75m x 1.8m.
Straight seam welder (50-100-150)
The straight seam welding machine is mainly used for the straight seam circular seam welding of the inner tank of the solar water heater, and has the function of spot welding at the same time. It is a multi-functional water tank resistance welding machine.The machine is capable of securely welding carbon steel, stainless steel, galvanized sheet and other plates with high speed and precision, without causing any damage to the stainless steel material. It has a welding length of 1800mm, power ranging from 50-150KW and can weld thicknesses between 0.2-1.2MM. The dimensions of the machine are 2.5m x 0.75m x 1.8m.
Product parameters
| Device name | Straight seam welder |
| Device model | LSW01 |
| Control power single-phase | 50Hz AC220V |
| Welding workpiece thickness range (mm) | 0.5~6 |
| Effective length of welding workpiece (mm ) | ≤1500 |
| Maximum diameter of welding workpiece | ∠1000mm |
| Minimum diameter of welding workpiece | ≥130mm |
| Skateboard moving speed | 100~2500mm/min |
| Skateboard walking accuracy | 0.2mm |
| Welding torch pneumatic lifting stroke | 100mm |
| Welding torch manual fine-tuning distance | x, z each 60mm |
| Dimensions (mm) | 25 00 × 750 × 1 800 |
