Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Product Name: |
No Tower Water Supply Line |
Input Voltage: |
380V |
Maximum No-load Power: |
220V |
Welding Thickness (mm): |
0.2-4MM |
Effective Length: |
1M |
Machine Size: |
1.5M×0.6M×1.7M |
Product Name: |
No Tower Water Supply Line |
Input Voltage: |
380V |
Maximum No-load Power: |
220V |
Welding Thickness (mm): |
0.2-4MM |
Effective Length: |
1M |
Machine Size: |
1.5M×0.6M×1.7M |

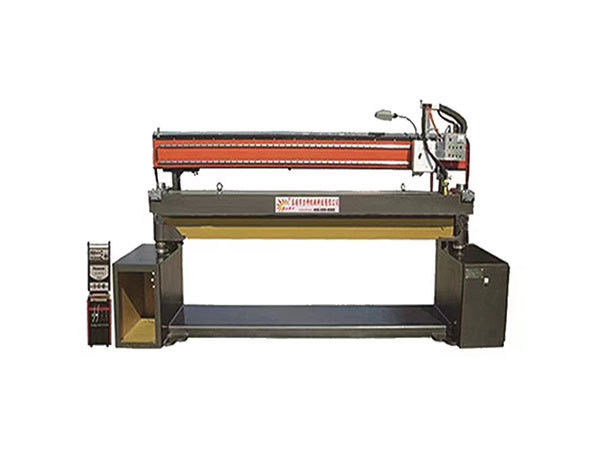

TIG straight seam welding machine can perform straight seam butt welding of stainless steel, carbon steel, copper, titanium, aluminum and other metal materials, without deformation of the workpiece, no intergranular corrosion, single-sided welding and double-sided forming, excellent weld quality, high degree of automation , easy to operate. It is suitable for the production of stainless steel products, electric water heaters, solar water heaters and other operations. The thickness of the weldment is 0.2mm-8mm, and the welding speed is continuously and steplessly adjustable. The length is 2 meters, and the machine size is 3.5 meters x 1.1 meters x 1.7 meters.
TIG straight seam welder
The TIG straight seam welding machine is capable of performing butt welding on stainless steel, carbon steel, copper, titanium, aluminum and other metal materials with a high degree of automation and excellent weld quality. It ensures no deformation or intergranular corrosion of the workpiece while allowing for single-sided welding and double-sided forming. This makes it ideal for producing stainless steel products, electric water heaters, solar water heaters and more.
Product parameters
|
Device name |
Straight seam welder |
|
Device model |
LSW01 |
|
Control power single-phase |
50Hz AC220V |
|
Welding workpiece thickness range (mm) |
0.5~6 |
|
Effective length of welding workpiece (mm ) |
≤1500 |
|
Maximum diameter of welding workpiece |
∠1000mm |
|
Minimum diameter of welding workpiece |
≥130mm |
|
Skateboard moving speed |
100~2500mm/min |
|
Skateboard walking accuracy |
0.2mm |
|
Welding torch pneumatic lifting stroke |
100mm |
|
Welding torch manual fine-tuning distance |
x, z each 60mm |
|
Dimensions (mm) |
25 00 × 750 × 1 800 |
