Power Supply:	380V/50Hz	Production Speed:	10 Tanks Per Hour
Weight:	10 Tons	Welding Method:	Automatic TIG Welding
Control System:	PLC Control	Tank Diameter:	1.5m-3m
Dimension:	20m X 10m X 5m	Cooling System:	Water Cooling
Tank Length:	3m-6m	Material:	Stainless Steel
Capacity:	1000 Tanks Per Day	Color:	Custom
Condition:	New	Warranty:	1 Year
Automatic Grade:	Automatic	Voltage:	Customized
Product Name:	Solar Collector Water Tank Production Line

Power Supply:	380V/50Hz
Production Speed:	10 Tanks Per Hour
Weight:	10 Tons
Welding Method:	Automatic TIG Welding
Control System:	PLC Control
Tank Diameter:	1.5m-3m
Dimension:	20m X 10m X 5m
Cooling System:	Water Cooling
Tank Length:	3m-6m
Material:	Stainless Steel
Capacity:	1000 Tanks Per Day
Color:	Custom
Condition:	New
Warranty:	1 Year
Automatic Grade:	Automatic
Voltage:	Customized
Product Name:	Solar Collector Water Tank Production Line

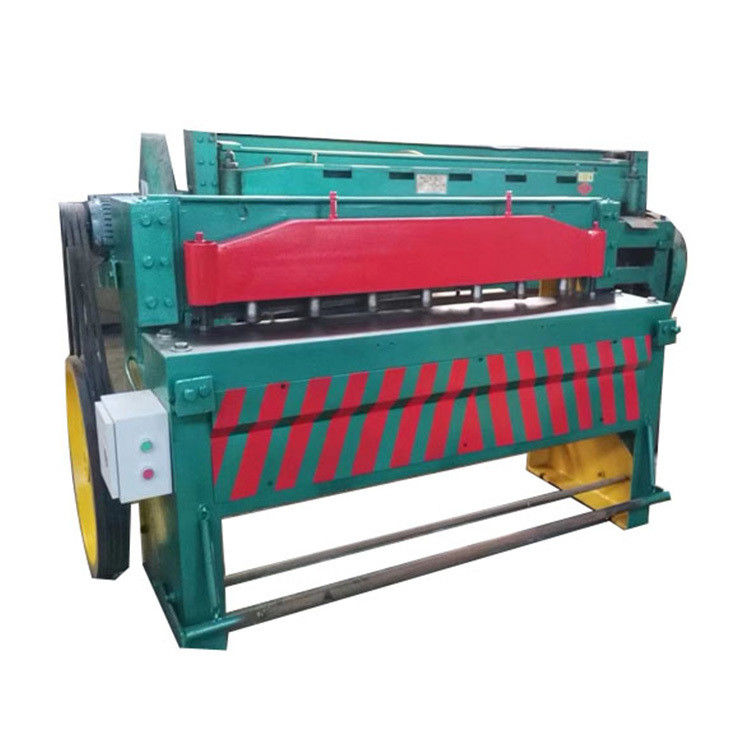

Solar Water Heater Production Line Hydraulic Metal Plate Shearing Machine

The mechanical shearing machine features a compact and simplistic structure, incorporating a clutch mechanism comprised of resistance keys and open gear transmission. It also utilizes advanced electrical components to ensure low operational noise, easy maintenance, aesthetically pleasing design, safety and reliability. This machine is primarily designed for cutting various types of plates with an effective working length of 3000mm, power output of 4KW and capable of shearing plate thicknesses ranging from 0.1-12MM. Machine dimensions are measured at 3m x.

Mechanical shears
The mechanical shearing machine features a compact and simplistic structure, incorporating a clutch mechanism comprised of resistance keys and open gear transmission. It also utilizes advanced electrical components to ensure low operational noise, easy maintenance, aesthetically pleasing design, safety and reliability. This machine is primarily designed for cutting various types of plates with an effective working length of 3000mm, power output of 4KW and capable of shearing plate thicknesses ranging from 0.1-12MM. Machine dimensions are measured at 3m x..

Product parameters

Device name		Mechanical shears
Device model		LPS02
Shear thickness (mm)		0.1-12
Maximum shear force (KN)		580
Shearing Angle (°)		0.5-2.5
The total number of trips (/min)		9
Distance between columns		2800
Maximum distance of back gauge (mm)		1000
Blade length (mm)		2500
The height of the table from the ground (mm)		850
Throat depth (mm)		100
Main motor power (KW)		15
Speed (r/min)		1470
Internal gear rotary pump flow (MI/r)		38
System maximum working pressure (Mpa)		Twenty two
Dimensions	Length (mm)	3260
	Width (mm)	2150
