Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Welding Method: |
TIG Welding |
After-Sales Service: |
Online Support/Field Installation, Commissioning And Training/Video Technical Support |
Weight: |
1000kg |
Production Speed: |
10-15 Tanks Per Hour |
Power Supply: |
220V/380V 50Hz |
Warranty: |
1 Year |
Dimension: |
2000mm*1500mm*1800mm |
Heating Method: |
Electric Heating |
Material: |
Stainless Steel |
Model: |
SCWT-1000 |
Control System: |
PLC Control |
Capacity: |
1000 Liters |
Color: |
Custom |
Condition: |
New |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Collector Water Tank Production Line |
Welding Method: |
TIG Welding |
After-Sales Service: |
Online Support/Field Installation, Commissioning And Training/Video Technical Support |
Weight: |
1000kg |
Production Speed: |
10-15 Tanks Per Hour |
Power Supply: |
220V/380V 50Hz |
Warranty: |
1 Year |
Dimension: |
2000mm*1500mm*1800mm |
Heating Method: |
Electric Heating |
Material: |
Stainless Steel |
Model: |
SCWT-1000 |
Control System: |
PLC Control |
Capacity: |
1000 Liters |
Color: |
Custom |
Condition: |
New |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Collector Water Tank Production Line |
The bracket forming machine is primarily utilized for the processing and production of brackets for solar water heaters. It has the capability to process various bracket components, including C-shaped, L-shaped, and flat diagonal braces simultaneously while maintaining an aesthetically pleasing appearance and high production efficiency. With a power output of 1.5KW, it can handle sheet thicknesses ranging from 0.2-1.2M with ease. The dimensions of this machine are 3 meters x 0.8 meters x 1.5 meters.

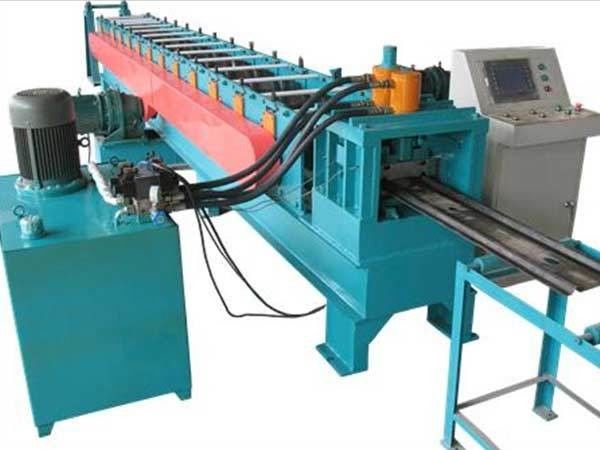

Bracket forming machine
The bracket forming machine is primarily utilized for the processing and production of brackets for solar water heaters. It has the capability to process various bracket components, including C-shaped, L-shaped, and flat diagonal braces simultaneously while maintaining an aesthetically pleasing appearance and high production efficiency. With a power output of 1.5KW, it can handle sheet thicknesses ranging from 0.2-1.2M with ease. The dimensions of this machine are 3 meters x 0.8 meters x 1.5 meters.
Product parameters
|
Device name |
Bracket forming machine |
|
Device model |
LMM03 |
|
Pressed plate thickness: |
0.2 - 1.2 mm |
|
Material |
Galvanized Sheet Cold Rolled Sheet Black Strip |
|
Forming pass |
More than 18 moldings |
|
Forming speed |
0-18m/min |
|
Drive mode |
Motor drive, gear chain drive |
|
Motor Power |
1.5KW _ |
|
Drive mode |
Motor drive, gear chain drive |
|
Machine size |
3M×0.8M×1.5M |
