Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Color: |
Custom |
Condition: |
New |
Warranty: |
1 Year |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Collector Water Tank Production Line |
Color: |
Custom |
Condition: |
New |
Warranty: |
1 Year |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Collector Water Tank Production Line |
The manual gantry rib-stretching machine is mainly used for pressing the ribs in the inner barrel of the solar water heater to enhance the strength of the water tank.The pressing ribs can be adjusted to any size as needed. With an effective working length of 1500mm and a power output of 0.75KW, this machine is capable of processing plates with a thickness range of 0.2-0.6MM. Its dimensions are 2.1 meters in length, 1.1 meters in width, and 1.7 meters in height.

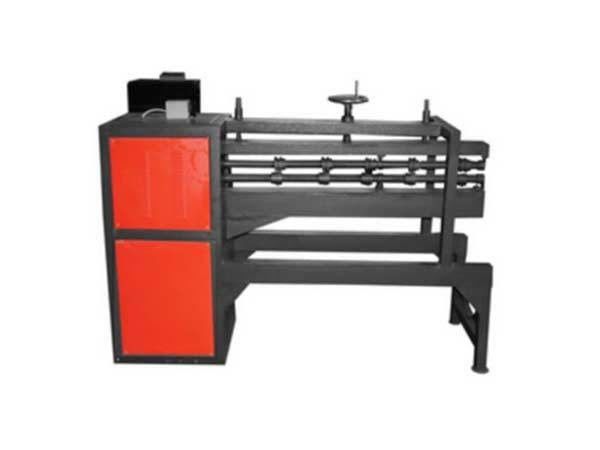

Manual gantry stretching machine
The manual gantry rib-stretching machine is mainly used for pressing the ribs in the inner barrel of the solar water heater to enhance the strength of the water tank.The pressing ribs can be adjusted to any size as needed. With an effective working length of 1500mm and a power output of 0.75KW, this machine is capable of processing plates with a thickness range of 0.2-0.6MM. Its dimensions are 2.1 meters in length, 1.1 meters in width, and 1.7 meters in height.
Product parameters
| Device name | Manual gantry stretching machine |
| Device model | LTM03 |
| Stretching depth | 0.5mm |
| Rib diameter range | Φ28-Φ80mm |
| Stretching position | 20-200mm |
| Material holding method | Hydraulic clamping |
| Work efficiency | 3 seconds/1 stick |
| Device power consumption | 0.75 Kw |
| Equipment weight | 440Kg |
| Dimensions | 2.1 X 1.1 X 1.7 M |
