Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Production Capacity: |
500-1000 Tanks Per Day |
Heating Method: |
Electric Heating |
Tank Size: |
100-500 Liters |
Control System: |
PLC Control |
Welding Method: |
Automatic Welding |
Material: |
Stainless Steel |
Power Supply: |
380V/50Hz |
Production Line Length: |
20-30 Meters |
Production Line Weight: |
10-15 Tons |
Production Line Width: |
5-8 Meters |
Production Line Height: |
3-5 Meters |
Insulation Material: |
Polyurethane Foam |
Color: |
Custom |
Condition: |
New |
Warranty: |
1 Year |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Water Tank Production Line |
Production Capacity: |
500-1000 Tanks Per Day |
Heating Method: |
Electric Heating |
Tank Size: |
100-500 Liters |
Control System: |
PLC Control |
Welding Method: |
Automatic Welding |
Material: |
Stainless Steel |
Power Supply: |
380V/50Hz |
Production Line Length: |
20-30 Meters |
Production Line Weight: |
10-15 Tons |
Production Line Width: |
5-8 Meters |
Production Line Height: |
3-5 Meters |
Insulation Material: |
Polyurethane Foam |
Color: |
Custom |
Condition: |
New |
Warranty: |
1 Year |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Water Tank Production Line |
Semi-automatic seaming machine is mainly used for straight seam undercut. It can independently move undercut and press, with high speed, uniform press without wrinkles, large length, suitable for long water tank processing, high efficiency and labor saving.The effective working length of the machine can reach up to 3000mm, with a power output of 1.5KW and a plate thickness range of 0.2-1.2MM. The overall dimensions of the machine are 3.5m x 1.3m x 1.8m.

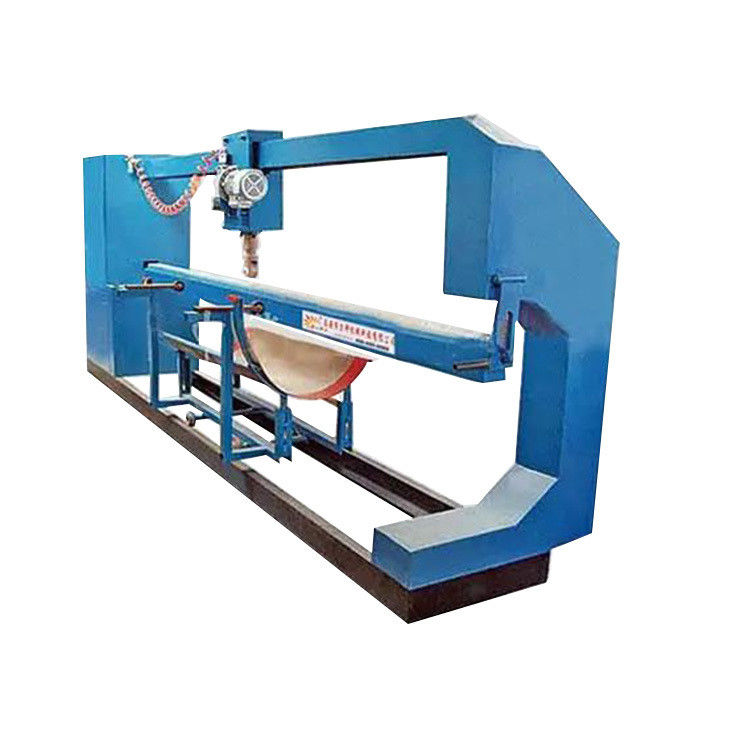

Semi-automatic seaming machine
Semi-automatic seaming machine is mainly used for straight seam undercut. It can independently move undercut and press, with high speed, uniform press without wrinkles, large length, suitable for long water tank processing, high efficiency and labor saving.The effective working length of the machine can reach up to 3000mm, with a power output of 1.5KW and a plate thickness range of 0.2-1.2MM. The overall dimensions of the machine are 3.5m x 1.3m x 1.8m.
Product parameters
|
Device name |
Semi-automatic seaming machine |
|
Device model |
LTP03 |
|
Workpiece form: |
12-gon, 18-gon and other polygonal workpieces |
|
Workpiece big end diameter ( mm ) |
3 000mm |
|
Small end diameter of workpiece ( mm ) |
300mm (when material thickness≤6mm) |
|
Workpiece thickness ( mm ) |
0.2mm ～ 1.2mm _ |
|
Workpiece material |
(Q235), (Q345) |
|
Workpiece length ( m ) |
4.0 ~ 14.0 meters (can be made according to user requirements) |
|
Workpiece taper |
3/1000, or equal diameter tube |
|
Rated welding current of submerged arc welding |
1000A |
|
Welding speed ( mm/min ) |
260-800mm/min |
|
Trolley |
17.0 meters |
|
Trolley track |
30 meters |
|
Trolley return speed ( mm/min ) |
4500mm/min |
|
Power |
1.5KW |
|
Machine size |
3.5M×1.3M×1.1M |
