Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Color: |
Customized |
Power Source: |
Electric |
Control System: |
PLC |
Usage: |
Solar Water Tank Production |
After-Sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Voltage: |
380V |
Production Line Type: |
Fully Automatic |
Warranty: |
1 Year |
Production Capacity: |
1000-2000 Pieces/Year |
Material: |
Stainless Steel |
Color: |
Custom |
Condition: |
New |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Water Tank Production Line |
Color: |
Customized |
Power Source: |
Electric |
Control System: |
PLC |
Usage: |
Solar Water Tank Production |
After-Sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Voltage: |
380V |
Production Line Type: |
Fully Automatic |
Warranty: |
1 Year |
Production Capacity: |
1000-2000 Pieces/Year |
Material: |
Stainless Steel |
Color: |
Custom |
Condition: |
New |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Product Name: |
Solar Water Tank Production Line |
The ordinary seaming machine is mainly used for processing water tanks and buckets that have been buckled and tenoned for digging and compacting. The effective working length is up to 3000mm, the power is 0.75KW, the thickness of the processed sheet is 0.2-1.2MM, and the machine size is 3.5m*1.8m*1.5m

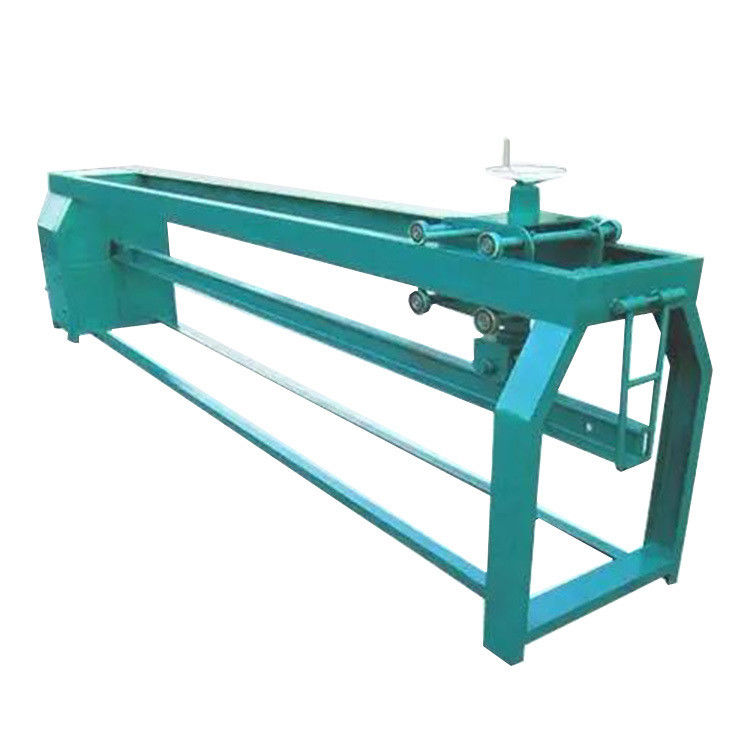

Manual seaming machine
The ordinary seaming machine is mainly used for processing water tanks and buckets that have been buckled and tenoned for digging and compacting.
Product parameters
|
Device name |
Manual seaming machine |
|
Device model |
LTP06 |
|
Workpiece form: |
12-gon, 18-gon and other polygonal workpieces |
|
Workpiece big end diameter ( mm ) |
3 000mm |
|
Small end diameter of workpiece ( mm ) |
300mm (when material thickness≤6mm) |
|
Workpiece thickness ( mm ) |
0.2mm ～ 1.2mm _ |
|
Workpiece material |
(Q235), (Q345) |
|
Workpiece length ( m ) |
4.0 ~ 14.0 meters (can be made according to user requirements) |
|
Workpiece taper |
3/1000, or equal diameter tube |
|
Rated welding current of submerged arc welding |
1000A |
|
Welding speed ( mm/min ) |
260-800mm/min |
|
Trolley |
17.0 meters |
|
Trolley track |
30 meters |
|
Trolley return speed ( mm/min ) |
4500mm/min |
|
Power |
0.75KW |
|
Machine size |
3.5M×0.8M×1.5M |
