Minimum Order Quantity: 1pc
Production Process: |
Automatic |
Material: |
Stainless Steel |
Control System: |
PLC |
Energy Efficiency: |
High |
Safety Features: |
Overheat Protection, Leakage Protection |
Power Supply: |
380V/50Hz |
Warranty: |
1 Year |
Operation Mode: |
Continuous |
Installation: |
Floor-mounted |
Production Capacity: |
100-500 Units/hour |
Heating Method: |
Electric Heating |
Application: |
Industrial/Commercial Use |
Temperature Control: |
Digital Display |
Product Name: |
Electric Water Heater Production Line |
Color: |
Customized |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Applicable Industries: |
Building Material Shops |
Condition: |
New |
Production Process: |
Automatic |
Material: |
Stainless Steel |
Control System: |
PLC |
Energy Efficiency: |
High |
Safety Features: |
Overheat Protection, Leakage Protection |
Power Supply: |
380V/50Hz |
Warranty: |
1 Year |
Operation Mode: |
Continuous |
Installation: |
Floor-mounted |
Production Capacity: |
100-500 Units/hour |
Heating Method: |
Electric Heating |
Application: |
Industrial/Commercial Use |
Temperature Control: |
Digital Display |
Product Name: |
Electric Water Heater Production Line |
Color: |
Customized |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Applicable Industries: |
Building Material Shops |
Condition: |
New |
Ordinary punching machines are equipped with both electrical and mechanical operating mechanisms, enabling them to perform a variety of sheet metal processing tasks such as punching, flanging, stretching, and forming. The machine boasts a simple structure that allows for flexible operation and convenient maintenance. Additionally, an automatic feeding structure can be configured to further enhance its capabilities. This equipment is commonly used in the production of water heaters, security doors, and other similar products. Its dimensions measure 0.8m x 1.1m x 1.8m while its power output is rated at 1.5KW.

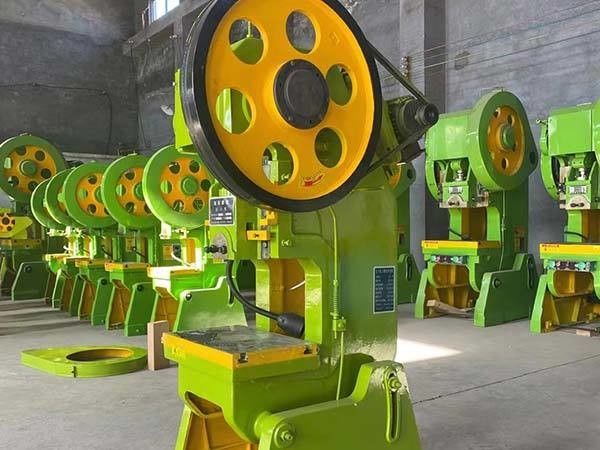

Ordinary punch (6.3T-600T)
Ordinary punching machines are equipped with both electrical and mechanical operating mechanisms, enabling them to perform a variety of sheet metal processing tasks such as punching, flanging, stretching, and forming. The machine boasts a simple structure that allows for flexible operation and convenient maintenance. Additionally, an automatic feeding structure can be configured to further enhance its capabilities. This equipment is commonly used in the production of water heaters, security doors, and other similar products. Its dimensions measure 0.8m x 1.1m x 1.8m while its power output is rated at 1.5KW.
Product parameters
|
Device name |
Ordinary punch |
|
|
Device model |
LPH03 |
|
|
Nominal force (KN) |
63 |
|
|
Slider stroke (mm) |
50 |
|
|
Number of trips (times/minute) |
160 |
|
|
The highest closed height (mm) |
170 |
|
|
Closed height adjustment (mm) |
40 |
|
|
Distance from slider center to body (mm) |
110 |
|
|
Working desk size |
Front and back (mm) |
200 |
|
Left and right (mm) |
315 |
|
|
Table hole size |
Front and back (mm) |
70 |
|
Left and right (mm) |
150 |
|
|
Slider Bottom Size |
Front and back (mm) |
135 |
|
Left and right (mm) |
145 |
|
|
Die handle hole size |
Diameter (mm) |
30 |
|
Depth (mm) |
50 |
|
|
Distance between columns (mm) |
150 |
|
|
Worktable thickness (mm) |
40 |
|
|
The maximum inclination angle of the fuselage (°) |
30 |
|
|
Dimensions of the press (mm) |
Width |
811 |
|
Length |
649 |
|
|
High |
1535 |
|
|
Electric motor |
Model |
|
|
Power (KW) |
0.75 |
|
|
Speed (rev/min) |
910 |
|
|
Total mass of press (Kg) |
400 |
|
