Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Product Name: |
Electric Water Heater Production Line |
Color: |
Customized |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Applicable Industries: |
Building Material Shops |
Condition: |
New |
Product Name: |
Electric Water Heater Production Line |
Color: |
Customized |
Automatic Grade: |
Automatic |
Voltage: |
Customized |
Applicable Industries: |
Building Material Shops |
Condition: |
New |
Automatic seaming machine is mainly used for straight seam undercut. It can independently move undercut and press, with high speed, uniform press without wrinkles, large length, suitable for long water tank processing, high efficiency and labor saving.The effective working length of the machine can reach up to 3000mm, with a power output of 1.5KW and a plate thickness range of 0.2-1.2MM. The overall dimensions of the machine are 3.5m x 1.3m x 1.8m.

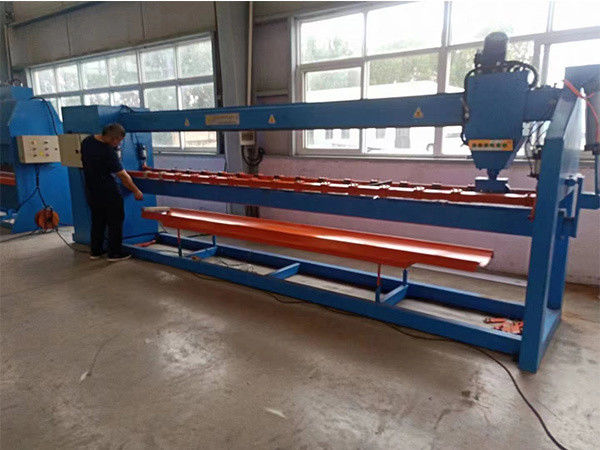

Automatic seaming machine
Automatic seaming machine is mainly used for straight seam undercut. It can independently move undercut and press, with high speed, uniform press without wrinkles, large length, suitable for long water tank processing, high efficiency and labor saving.The effective working length of the machine can reach up to 3000mm, with a power output of 1.5KW and a plate thickness range of 0.2-1.2MM. The overall dimensions of the machine are 3.5m x 1.3m x 1.8m.
Product parameters
| Device name | Automatic seaming machine |
| Device model | LTP02 |
| Workpiece form: | 12-gon, 18-gon and other polygonal workpieces |
| Workpiece big end diameter ( mm ) | 3 000mm |
| Small end diameter of workpiece ( mm ) | 300mm (when material thickness≤6mm) |
| Workpiece thickness ( mm ) | 0.2mm ～ 1.2mm _ |
| Workpiece material | (Q235), (Q345) |
| Workpiece length ( m ) | 4.0 ~ 14.0 meters (can be made according to user requirements) |
| Workpiece taper | 3/1000, or equal diameter tube |
| Rated welding current of submerged arc welding | 1000A |
| Welding speed ( mm/min ) | 260-800mm/min |
| Trolley | 17.0 meters |
| Trolley track | 30 meters |
| Trolley return speed ( mm/min ) | 4500mm/min |
| PPower | 1.5KW |
| Machine size | 3.5M×1.3M×1.8M |
