Product Details
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Production Speed: |
10-15 Tanks Per Minute |
Heating Method: |
Electric Heating |
Warranty: |
1 Year |
Cooling Method: |
Water Cooling |
Control System: |
PLC Control |
Material: |
Stainless Steel |
Model: |
STPL-1000 |
Welding Method: |
Automatic Welding |
Power Supply: |
380V/50Hz |
Weight: |
5000kg |
Dimensions: |
10m X 5m X 3m |
Capacity: |
1000 Tanks Per Day |
Product Name: |
Solar Inner Tank Production Line |
Color: |
Custom |
Condition: |
New |
Voltage: |
Customized |
Automatic Grade: |
Automatic |
Production Speed: |
10-15 Tanks Per Minute |
Heating Method: |
Electric Heating |
Warranty: |
1 Year |
Cooling Method: |
Water Cooling |
Control System: |
PLC Control |
Material: |
Stainless Steel |
Model: |
STPL-1000 |
Welding Method: |
Automatic Welding |
Power Supply: |
380V/50Hz |
Weight: |
5000kg |
Dimensions: |
10m X 5m X 3m |
Capacity: |
1000 Tanks Per Day |
Product Name: |
Solar Inner Tank Production Line |
Color: |
Custom |
Condition: |
New |
Voltage: |
Customized |
Automatic Grade: |
Automatic |
The four-column press is equipped with three speeds for no-load fast, slow die and workpiece deep drawing. It boasts high work efficiency, low energy consumption, convenient operation, stable performance and other advantages. It finds extensive applications in metal pressing, forming, bending as well as flanging correction and other processes. The size of the worktable and the tonnage of hydraulic cylinder can be customized according to customer requirements.

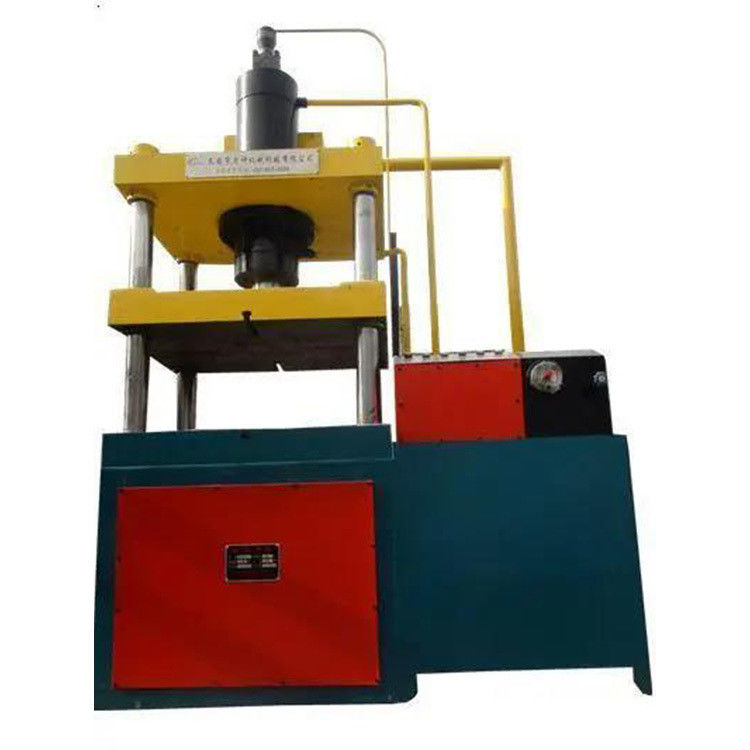

Four-column press (10T-500T)
The four-column press is equipped with three speeds for no-load fast, slow die and workpiece deep drawing. It boasts high work efficiency, low energy consumption, convenient operation, stable performance and other advantages. It finds extensive applications in metal pressing, forming, bending as well as flanging correction and other processes. The size of the worktable and the tonnage of hydraulic cylinder can be customized according to customer requirements.
Product parameters
|
Device name |
Four-column press |
|
Device model |
LPR01 |
|
Nominal pressure ( KN ) |
8000 |
|
Nominal pressure stroke ( mm ) |
13 |
|
Slider stroke ( mm ) |
800 |
|
Maximum die height ( mm ) |
1400 |
|
Die height adjustment amount ( mm ) |
600 |
|
Slider Bottom Surface Dimensions ( mm ) |
4600*2500 |
|
Work surface size ( mm ) |
4600*2500 |
|
Upper slider pad thickness ( mm ) |
120+120 |
|
Trips ( spm ) |
16 in a row |
|
Air Cushion Force ( KN ) |
1500 |
|
Air cushion force stroke ( mm ) |
0250 (adjustable) |
|
Maximum load-bearing capacity of the worktable (tons) |
40 |
|
Press continuous stroke work ( ton * m ) |
27 |
|
Balance capacity (excluding pad weight) (tons) |
20 |
|
Number of fine-tuning ( spm ) |
0.7 ~ 51.5 |
